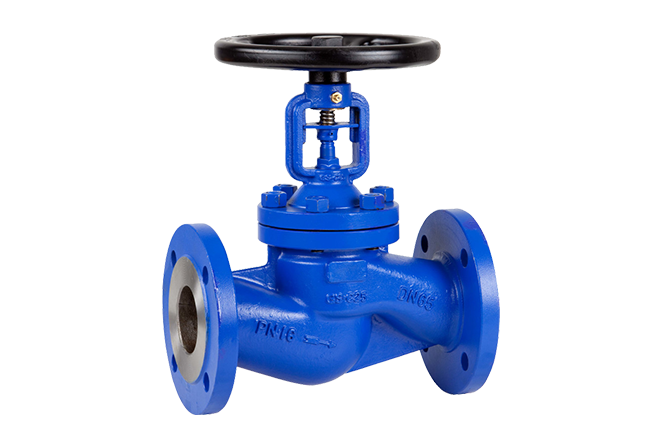

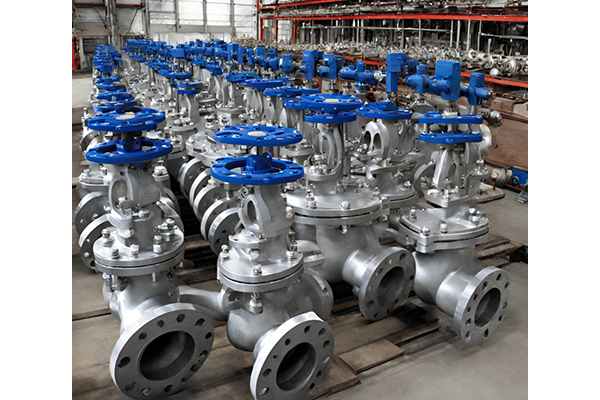

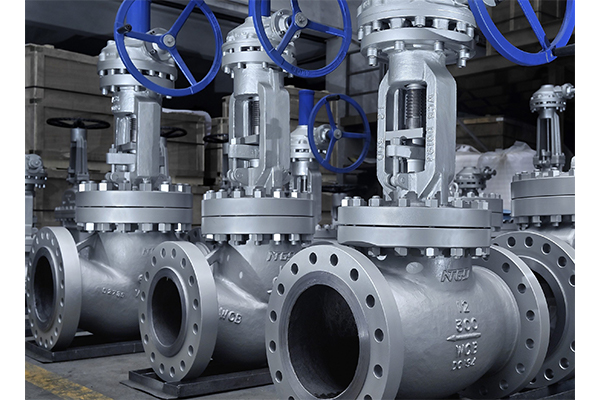

Globe Valve

Size range:DN50~600
Pressure:PN16~760
Body material:carbon steel, stainless steel, alloy steel and double -phase steel, low -temperature steel, nickel -based, titanium alloy
Operation:manual, worm gear, electric, hydraulic, etc.
Email Message Brochure

Overview

Globe valve, also known as the shut-off valve, is a forced sealing valve, so when the valve is closed, pressure must be applied to the disc to force the sealing surface not to leak.

Features

  1. 1.Simple structure, more convenient manufacturing and maintenance.
  2. 2.The working stroke is small, and the opening and closing time is short.
  3. 3.Good sealing, small friction between sealing surfaces, long life.
  4. 4.The sealing surface stacked hard alloys,good wear resistance, corrosion resistance and good friction resistance.
  5. 5.The spool can be used as a shut-off type and an adjustment type as needed.

Technical Specifications

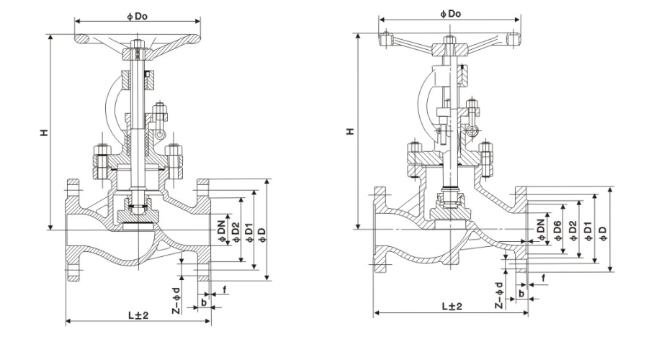

DN Main dimensions and connection dimensions
L D D1 D2 b Z-d H D0
J41H-16C
15 130 95 65 45 14-2 4-Φ14 170 120
20 150 105 75 55 14-2 4-Φ14 190 140
25 160 115 85 65 14-2 4-Φ14 205 160
32 180 135 100 78 16-2 4-Φ18 270 180
40 200 145 110 85 16-3 4-Φ18 310 200
50 230 160 125 100 16-3 4-Φ18 358 240
65 290 180 145 120 18-3 4-Φ18 373 240
80 310 195 160 135 20-3 8-Φ18 435 280
100 350 215 180 155 20-3 8-Φ18 500 300
125 400 245 210 185 22-3 8-Φ18 614 320
150 480 280 240 210 24-3 8-Φ23 674 360
200 600 335 295 265 26-3 12-Φ23 811 400
250 650 405 355 320 30-3 12-Φ25 969 450
300 750 460 410 375 30-3 12-Φ25 1145 580
350 850 520 470 435 34-4 16-Φ25 1280 640
400 980 580 525 485 36-4 16-Φ30 1452 640
J41H-25C
15 130 95 65 45 16-2 4-Φ14 170 120
20 150 105 75 55 16-2 4-Φ14 190 140
25 160 115 85 65 16-2 4-Φ14 205 160
32 180 135 100 78 18-2 4-Φ18 270 180
40 200 145 110 85 18-3 4-Φ18 310 200
50 230 160 125 100 20-3 4-Φ18 358 240
65 290 180 145 120 22-3 8-Φ18 373 240
80 310 195 160 135 22-3 8-Φ18 435 280
100 350 230 190 160 24-3 8-Φ23 500 300
125 400 270 220 188 28-3 8-Φ25 614 320
150 480 300 250 218 30-3 8-Φ25 674 360
200 600 360 310 278 34-3 12-Φ25 811 400
250 650 425 370 332 36-3 12-Φ30 969 450
300 750 485 430 390 40-4 16-Φ30 1145 580
350 850 550 490 448 44-4 16-Φ34 1280 640
400 980 610 550 505 48-4 16-Φ34 1452 640

Note: Technical specifications may change without notice due to ongoing technological advancements.
