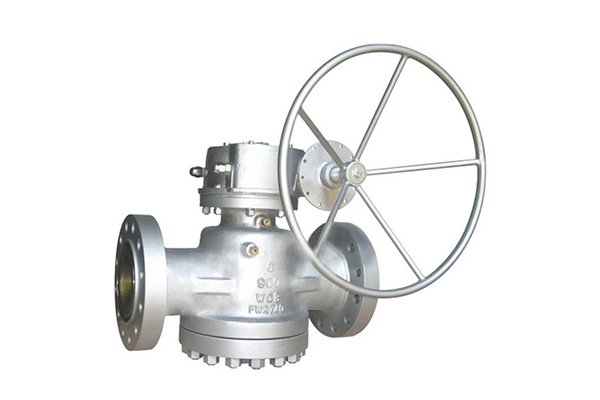

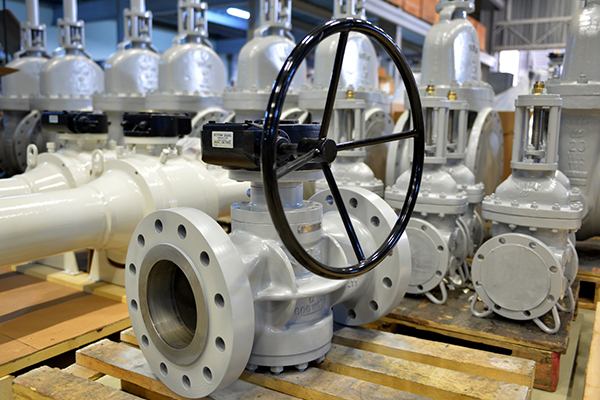

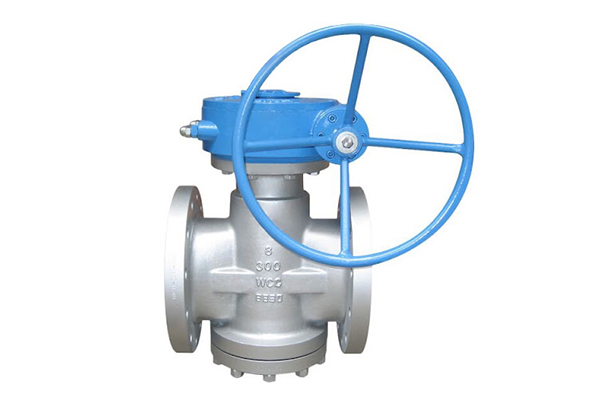

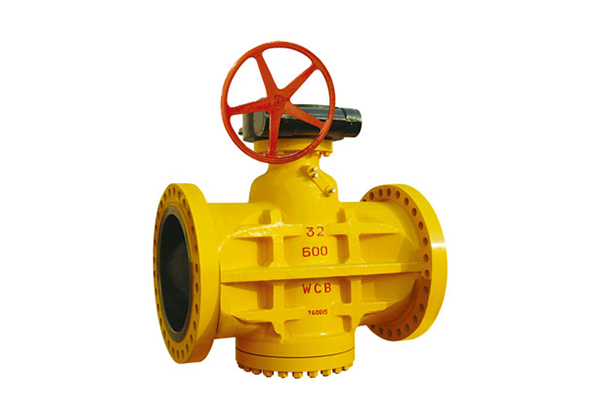

API Pressure Balance Plug Valve

Size range:NPS1/2”~40"
Pressure:Class150~2500
Body material:A105, WCB, LCB, WCC, CF8, CF8M, CF3, CF3M, A890 4A, etc.
Operation:manual, gear box, electric, pneumatic, hydraulic, etc.
Email Message Brochure

Overview

An API Pressure Balance Plug Valve is a type of valve used in industrial applications to regulate the flow of fluids. This valve has a cylindrical, tapered plug that rotates within the body of the valve to control fluid flow. The unique feature of this design is that it balances pressure across the plug, allowing for easier operation and more consistent performance. According to ANSI, API Pressure Balance Plug Valve is applicable to the cutting and connection of pipelines medium and is used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, electric power industry etc.

Features

  1. 1.Highly durable and minimal maintenance.
  2. 2.Excellent sealing capabilities that prevent any leakage or seepage from occurring during operation.
  3. 3.Precise control over fluid flow which results in improved efficiency and reduced costs.
  4. 4.Logical structure, reliable seal and excellent performance.
  5. 5.It has the structure of flip-chip balance able pressure and light on/off operation.

Technical Specifications

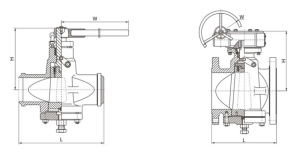

API Pressure Balance Plug Valve Technical Parameters
X47W/X347W-150LB
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L 108 117 127 140 165 178 190 203 229 254 267 292 330 356 381
H 180 180 185 200 214 215 250 270 300 340 365 400 450 510 590
W 400 400 500 500 600 600 820 820 300 300 320 320 350 380 380
X47W/X347W-300LB
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L 140 152 165 178 190 216 241 283 305 381 403 419 457 502 762
H 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W 400 400 500 600 600 820 1000 1000 300 300 320 320 350 380 380
X47W/X347W-600LB
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L 165 190 216 229 241 292 330 356 432 508 559 660 787 838 889
H 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W 400 400 500 500 600 600 820 820 300 300 320 320 350 380 380
X47W/X347W-900LB
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L 216 229 254 279 305 368 419 381 457 559 610 737 838 965 1029
H 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W 400 400 500 600 600 820 1000 1000 300 300 320 320 350 380 380

Note: Technical specifications may change without notice due to ongoing technological advancements.
