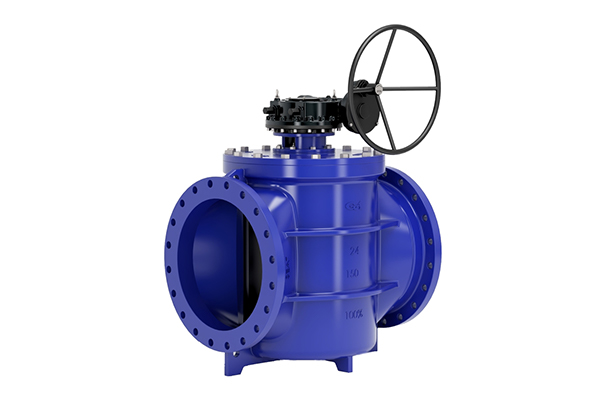

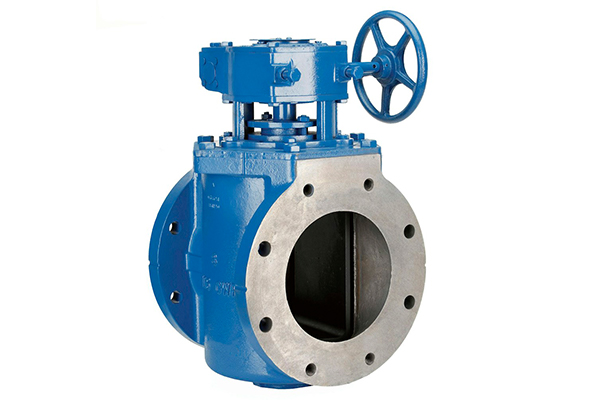

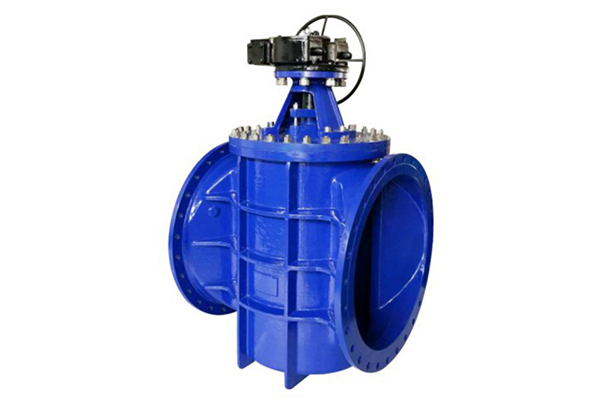

Eccentric Plug Valve

Size range:NPS2~36”
Pressure:Class150
Body material:A105, LF2, F304, F316, F304L, F316L, F51, WCB, LCB, WCC, CF8, CF8M, CF3, CF3M, A890 4A
Operation:manual, worm gear, electric, pneumatic, hydraulic, pneumatic-hydraulic
Email Message Brochure

Overview

Eccentric plug valve makes improvements on traditional plug valve and segment valve, provides reliable applications and offers availability and long service life for various media, high-speed, corrosive fluid and fluid with impurity.

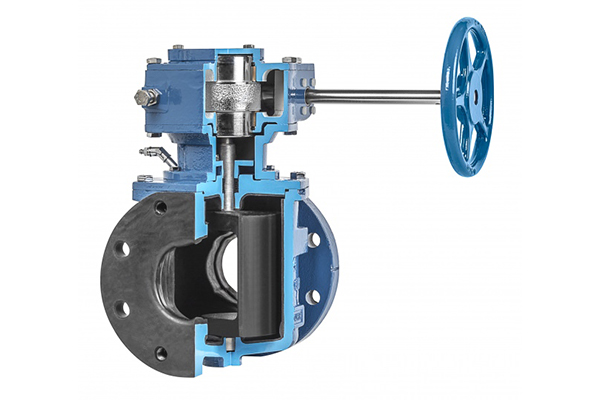

Features

  1. 1.Wholly rubber-coated cock.
  2. 2.Special corrosion-resistant seat.
  3. 3.Rectangular through passageway.
  4. 4.Integral bow-shaped valve shaft.
  5. 5.Demountable bonnet.
  6. 6.High-strength pressure shell.
  7. 7.High-temperature and high-speed medium.
  8. 8.Anti-corrosion surface treatment.

Technical Specifications

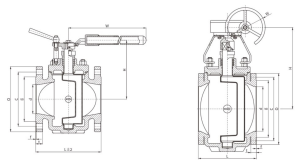

MAIN DIMENSIONS OF GB OR DIN ECCENTRIC COCK
PN10 REDUCED BORE, HANDWHEEL, TURBINE OPERATED
Size(DN) L 0 C g d t f H n-d
50 178 Φ165 Φ125 Φ102 51 18 3 145 4-Φ18
80 203 Φ200 Φ160 Φ138 76 20 3 180 8-Φ18
100 229 Φ220 Φ180 Φ158 102 20 3 207 8-Φ18
150 267 Φ285 Φ240 Φ212 152 22 3 280 8-Φ22
200 292 Φ340 Φ295 Φ268 203 24 3 382 8-Φ22
250 330 Φ395 Φ350 Φ320 254 26 3 455 12-Φ22
300 356 Φ445 Φ400 Φ370 305 26 4 480 12-Φ22
350 432 Φ505 Φ460 Φ430 337 26 4 515 16-Φ22
400 450 Φ565 Φ515 Φ482 387 26 4 560 16-Φ26
450 546 Φ615 Φ565 Φ532 438 28 4 620 20-Φ26
500 597 Φ670 Φ620 Φ585 489 28 4 690 20-Φ26
600 813 Φ780 Φ725 Φ685 591 30 5 817 20-Φ30
700 900 Φ895 Φ840 Φ800 692 35 5 900 24-Φ30
800 1000 Φ1015 Φ950 Φ905 779 38 5 950 24-Φ33
900 1321 Φ1115 Φ1050 Φ1005 874 38 5 1100 28-Φ33
MAIN DIMENSIONS OF GB OR DIN ECCENTRIC COCK
PN16 REDUCED BORE, HANDWHEEL, TURBINE OPERATED
Size(DN) L 0 C g d t f H n-d
50 178 Φ165 Φ125 Φ102 51 18 3 145 4-Φ18
80 203 Φ200 Φ160 Φ138 76 20 3 180 8-Φ18
100 229 Φ220 Φ180 Φ158 102 20 3 207 8-Φ18
150 267 Φ285 Φ240 Φ212 152 22 3 280 8-Φ22
200 292 Φ340 Φ295 Φ268 203 24 3 382 12-Φ22
250 330 Φ405 Φ355 Φ320 254 26 3 455 12-Φ26
300 356 Φ460 Φ410 Φ378 305 28 4 480 12-Φ26
350 432 Φ520 Φ470 Φ438 337 30 4 515 16-Φ26
400 450 Φ580 Φ525 Φ490 387 32 4 560 16-Φ30
450 546 Φ640 Φ585 Φ550 438 34 4 620 20-Φ30
500 597 Φ715 Φ650 Φ610 489 36 4 690 20-Φ33
600 813 Φ840 Φ770 Φ725 591 40 5 817 20-Φ36
700 900 Φ910 Φ840 Φ795 692 40 5 900 24-Φ36
800 1000 Φ1025 Φ950 Φ900 779 41 5 950 24-Φ39
900 1321 Φ1125 Φ1050 Φ1000 874 48 5 1100 28-Φ39
MAIN DIMENSIONS OF ANSI ECCENTRIC COCK 150LB
150LB REDUCED BORE, HANDWHEEL, TURBINE OPERATED
Size(NPS) L 0 C g d t f H n-d
2 178 Φ150 Φ120.5 Φ92 51 16.3 2 145 4-Φ19
3 203 Φ190 Φ152.5 Φ127 76 19.5 2 180 4-Φ19
4 229 Φ230 Φ190.5 Φ157 102 24.3 2 207 8-Φ19
6 267 Φ280 Φ241.5 Φ216 152 26 2 280 8-Φ22
8 292 Φ345 Φ298.5 Φ270 203 29 2 382 8-Φ22
10 330 Φ405 Φ362 Φ324 254 31 2 455 12-Φ25
12 356 Φ485 Φ432 Φ381 305 32.2 2 480 12-Φ25
14 432 Φ535 Φ476 Φ413 337 35 2 515 12-Φ29
16 450 Φ595 Φ540 Φ470 387 37 2 560 16-Φ29
18 546 Φ635 Φ577.9 Φ533 438 40.1 2 620 16-Φ32
20 597 Φ700 Φ635 Φ584 489 43.3 2 690 20-Φ32
24 813 Φ815 Φ749.3 Φ692 591 48.1 2 817 20-Φ35
28 900 Φ925 Φ863.6 Φ800 692 71.9 2 900 28-Φ35
30 1000 Φ985 Φ914.4 Φ857 779 75.1 2 950 28-Φ35
36 1321 Φ1170 Φ1085.8 Φ1022 874 90.9 2 1100 32-Φ41

Note: Technical specifications may change without notice due to ongoing technological advancements.
