Sleeve Plug Valve

Size range:DN15~1000 NPS1/2"~40"
Pressure:PN6~250
Body material:ductile cast iron, carbon steel, stainless steel, alloy steel, etc.
Operation:manual, worm gear, hydraulic, electric, pneumatic, etc.
Email Message Brochure

Overview

Sleeve plug valves are non-lubricated quarter-turn valves that achieve sealing through the use of a compressible sleeve as a sealing member. In many applications they operate virtually maintenance free for decades.

Features

  1. 1.Fixed sleeve no displacement with plug valve body;
  2. 2.Top entry design, easy for online installation & maintenance;
  3. 3.PTFE sleeve material, self-lubricated, small operating torque;
  4. 4.No body cavities, self-cleaning design on sealing surfaces；
  5. 5.Compensable sealing pressure for high quality sealing without leakage;
  6. 6.Bidirectional seals, no limitation on the flow direction；
  7. 7.Antistatic & Fireproof design for safety；
  8. 8.Full-bore or necked-type plug valve can be chosen, Jacketed design can be chosen.
  9. 9.Application: gas-solid & Liquid-solid with high washing ability; acid production, alkali production, petroleum, and chemical industries.

Technical Specifications

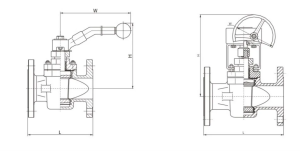

ANSI-Sleeve soft plug valve
X343F/X43F-150LB
DN mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in  1/2  3/4 1 1 1/4 1 1/2 2 2 1/2 3 4 5 6 8 10 12 14
L 108 117 127 140 165 178 190 203 229 254 267 292 330 356 381
H 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W 195 205 205 315 315 330 400 590 690 300 320 320 350 380 450
X343F/X43F-300LB
DN mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in  1/2  3/4 1 1 1/4 1 1/2 2 2 1/2 3 4 5 6 8 10 12 14
L 140 152 165 178 190 216 241 283 305 381 403 419 457 502 762
H 110 115 115 135 140 150 165 180 380 460 502 580 620 680 760
W 195 205 205 315 315 330 400 590 690 300 320 320 350 380 450
X343F/X43F-600LB
DN mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in  1/2  3/4 1 1 1/4 1 1/2 2 2 1/2 3 4 5 6 8 10 12 14
L 165 190 216 229 241 292 330 356 432 508 559 660 787 838 889
H 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W 195 205 205 315 315 330 400 590 690 300 320 320 350 380 450
X343F/X43F-900LB
DN mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 0.5 0.75 1 1.25 1.5 2 2.5 3 4 5 6 8 10 12 14
L 216 229 254 279 305 368 419 381 457 559 610 737 838 965 1029
H 110 115 115 135 140 150 165 180 380 460 520 580 620 680 760
W 195 205 205 315 315 330 400 590 690 300 320 320 350 380 450



DIN- Sleeve soft plug valve
X343F/X43F-16/25
DN-mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980
H 150 155 160 180 190 200 220 230 380 460 520 580 620 680 740
W 195 205 205 315 315 330 400 590 690 300 320 320 350 380 380
X343F/X43F-40
DN-mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L 130 150 160 18 200 230 290 310 350 400 480 600 730 850 980
H 150 155 160 180 190 200 220 230 380 460 520 580 620 680 740
W 195 205 205 315 315 330 400 590 690 300 320 320 350 380 380
X343F/X43F-64
DN-mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980
H 150 155 160 180 190 200 220 230 380 460 520 580 620 680 740
W 195 205 205 315 315 330 400 590 690 300 320 320 350 380 380

Note: Technical specifications may change without notice due to ongoing technological advancements.
