Trunnion Mounted Ball Valve

Size range:DN15~1200
Pressure:PN10~420 Class150~2500
Body material:cast iron, ductile iron, WCB, LCB, CF8, CF8M, CF3, CF3M, A890 4A, etc.
Operation:handwheel, worm gear, lever, electric, pneumatic, hydraulic, etc.
Email Message Brochure

Overview

Trunnion Mounted Ball Valves can be side mounted 2-piece or 3-piece, designed according to API 6D and can undergo fire testing according to API 6FA and API 607 standards.Suitable for water, gas, oil products, natural gas, and acidic and alkaline corrosive media.

Features

1.Low fluid resistance.
2.Simple structure, small size, and light weight.
3.Tight and reliable.
4.Easy to operate, quick opening and closing, convenient for remote control.
5.Easy maintenance.
6.When fully open or fully closed, it will not cause erosion of the valve sealing surface.
7.Wide applicability.
8.Fire resistant structure. The fire resistance test meets the requirements of APl6FA and APl607 standards.
9.Automatic pressure relief function.
10.Double blocking and emission function.

Technical Specifications

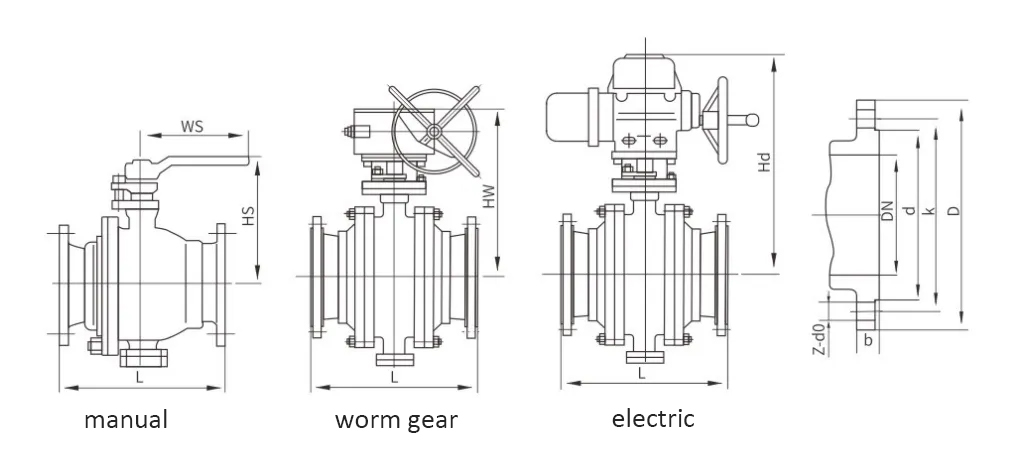

Q47F/H Main Dimensions (mm)
DN L D K d b Z-d0 Ws Hs Hw Hd
PN16
50 203 160 125 100 16 4-Φ18 260 150 – –
65 222 180 145 120 18 4-Φ18 350 180 – –
80 241 195 160 135 20 8-Φ18 500 195 – –
100 305 215 180 155 20 8-Φ18 650 245 310 420
125 356 245 210 185 22 8-Φ18 800 270 330 440
150 394 280 240 210 24 8-Φ23 1000 305 470 540
200 457 335 295 265 26 12-Φ23 – – 520 580
250 533 405 355 320 30 12-Φ25 – – 610 640
300 610 460 410 375 30 12-Φ25 – – 650 690
350 686 520 470 435 34 16-Φ25 – – 740 785
400 762 580 525 485 36 16-Φ30 – – 795 830
450 864 640 585 545 40 20-Φ30 – – 860 910
500 914 705 650 608 44 20-Φ34 – – 945 990
600 1067 840 770 718 48 20-Φ41 – – 1040 1090
700 1245 910 840 788 50 24-Φ41 – – 1150 1210
800 1372 1020 950 898 52 24-Φ41 – – 1280 1340
900 1524 1120 1050 998 54 28-Φ41 – – 1430 1510
1000 1753 1255 1170 1110 56 28-Φ48 – – 1580 1640
1200 2032 1485 1390 1325 58 32-Φ54 – – 1810 1910
1400 2300 1685 1590 1525 60 36-Φ54 – – 2010 2115
PN25
50 203 160 125 100 20 4-Φ18 260 150 – –
65 222 180 145 120 22 8-Φ18 350 180 – –
80 241 195 160 135 22 8-Φ18 500 195 – –
100 305 230 190 160 24 8-Φ23 650 245 310 420
125 356 270 220 188 28 8-Φ25 800 270 330 440
150 394 300 250 218 30 8-Φ25 1000 305 470 555
200 457 360 310 278 34 12-Φ25 – – 540 595
250 533 425 370 332 36 12-Φ30 – – 630 655
300 610 485 430 390 40 16-Φ30 – – 650 705
350 686 550 490 448 44 16-Φ34 – – 740 795
400 762 610 550 505 48 16-Φ36 – – 795 830
450 864 660 600 555 50 20-Φ36 – – 860 910
500 914 730 660 610 52 20-Φ41 – – 945 990
600 1067 840 770 718 56 20-Φ41 – – 1040 1090
700 1245 955 875 815 60 24-Φ48 – – 1150 1210
800 1372 1070 990 930 64 24-Φ48 – – 1305 1340
900 1524 1180 1090 1025 66 28-Φ54 – – 1505 1600
1000 1753 1305 1210 1140 68 28-Φ58 – – 1615 1705
1200 2032 1525 1420 1350 72 32-Φ58 – – 1925 2035
1400 2300 1750 1640 1560 78 36-Φ65 – – 2110 2185
PN40
50 216 160 125 100 20 4-Φ18 260 150 – –
65 241 180 145 120 22 8-Φ18 350 180 – –
80 283 195 160 135 22 8-Φ18 500 195 – –
100 305 230 190 160 24 8-Φ23 800 250 320 430
125 381 270 220 188 28 8-Φ25 1000 280 340 450
150 403 300 250 218 30 8-Φ25 1000 360 485 590
200 502 375 320 282 38 12-Φ30 – – 580 640
250 568 445 385 345 42 12-Φ34 – – 665 680
300 648 510 450 408 46 16-Φ34 – – 760 810
350 762 570 510 465 52 16-Φ36 – – 820 890
400 838 655 585 535 58 16-Φ41 – – 860 940
450 914 680 610 560 60 20-Φ41 – – 930 1010
500 991 755 670 612 62 20-Φ48 – – 980 1130
600 1143 890 795 730 62 20-Φ54 – – 1040 1090
700 1346 995 900 835 68 24-Φ54 – – 1150 1210
800 1524 1135 1030 960 76 24-Φ58 – – 1305 1340
900 1727 1270 1168 1022 105 32-Φ54 – – 1505 1600
1000 1880 1238 1156 1086 114 32-Φ44 – – 1615 1705
1200 2184 1467 1372 1302 133 32-Φ51 – – 1925 2035
PN64
50 292 175 135 105 26 4-Φ23 260 160 – –
65 330 200 160 130 28 8-Φ23 350 180 – –
80 356 210 170 140 30 8-Φ23 500 220 – –
100 406 250 200 168 32 8-Φ25 800 250 320 430
125 508 295 240 202 36 8-Φ30 1000 295 340 450
150 495 340 280 240 38 8-Φ34 1200 360 485 590
200 597 405 345 300 44 12-Φ36 – – 580 650
250 673 470 400 352 48 12-Φ41 – – 665 720
300 762 530 460 412 54 16-Φ41 – – 760 840
350 826 595 525 475 60 16-Φ41 – – 820 930
400 902 670 585 525 66 16-Φ48 – – 870 990
500 1054 800 705 640 70 20-Φ54 – – 995 1150
600 1232 930 820 750 76 20-Φ58 – – 1100 1180
700 1397 1035 940 800 95 28-Φ51 – – 1180 1230
800 1651 1149 1054 914 108 28-Φ54 – – 1345 1385
900 1880 1270 1168 1022 114 32-Φ54 – – 1550 1655
1000 1981 1270 1175 1092 133 32-Φ51 – – 1675 1745
1200 2311 1511 1403 1308 152 28-Φ60 – – 1945 2075
Q47F/H Main Dimensions (mm)
DN L D K d b Z-d0 Ws Hs Hw Hd
PN16
50 203 160 125 100 16 4-Φ18 260 150 – –
65 222 180 145 120 18 4-Φ18 350 180 – –
80 241 195 160 135 20 8-Φ18 500 195 – –
100 305 215 180 155 20 8-Φ18 650 245 310 420
125 356 245 210 185 22 8-Φ18 800 270 330 440
150 394 280 240 210 24 8-Φ23 1000 305 470 540
200 457 335 295 265 26 12-Φ23 – – 520 580
250 533 405 355 320 30 12-Φ25 – – 610 640
300 610 460 410 375 30 12-Φ25 – – 650 690
350 686 520 470 435 34 16-Φ25 – – 740 785
400 762 580 525 485 36 16-Φ30 – – 795 830
450 864 640 585 545 40 20-Φ30 – – 860 910
500 914 705 650 608 44 20-Φ34 – – 945 990
600 1067 840 770 718 48 20-Φ41 – – 1040 1090
700 1245 910 840 788 50 24-Φ41 – – 1150 1210
800 1372 1020 950 898 52 24-Φ41 – – 1280 1340
900 1524 1120 1050 998 54 28-Φ41 – – 1430 1510
1000 1753 1255 1170 1110 56 28-Φ48 – – 1580 1640
1200 2032 1485 1390 1325 58 32-Φ54 – – 1810 1910
1400 2300 1685 1590 1525 60 36-Φ54 – – 2010 2115
PN25
50 203 160 125 100 20 4-Φ18 260 150 – –
65 222 180 145 120 22 8-Φ18 350 180 – –
80 241 195 160 135 22 8-Φ18 500 195 – –
100 305 230 190 160 24 8-Φ23 650 245 310 420
125 356 270 220 188 28 8-Φ25 800 270 330 440
150 394 300 250 218 30 8-Φ25 1000 305 470 555
200 457 360 310 278 34 12-Φ25 – – 540 595
250 533 425 370 332 36 12-Φ30 – – 630 655
300 610 485 430 390 40 16-Φ30 – – 650 705
350 686 550 490 448 44 16-Φ34 – – 740 795
400 762 610 550 505 48 16-Φ36 – – 795 830
450 864 660 600 555 50 20-Φ36 – – 860 910
500 914 730 660 610 52 20-Φ41 – – 945 990
600 1067 840 770 718 56 20-Φ41 – – 1040 1090
700 1245 955 875 815 60 24-Φ48 – – 1150 1210
800 1372 1070 990 930 64 24-Φ48 – – 1305 1340
900 1524 1180 1090 1025 66 28-Φ54 – – 1505 1600
1000 1753 1305 1210 1140 68 28-Φ58 – – 1615 1705
1200 2032 1525 1420 1350 72 32-Φ58 – – 1925 2035
1400 2300 1750 1640 1560 78 36-Φ65 – – 2110 2185
PN40
50 216 160 125 100 20 4-Φ18 260 150 – –
65 241 180 145 120 22 8-Φ18 350 180 – –
80 283 195 160 135 22 8-Φ18 500 195 – –
100 305 230 190 160 24 8-Φ23 800 250 320 430
125 381 270 220 188 28 8-Φ25 1000 280 340 450
150 403 300 250 218 30 8-Φ25 1000 360 485 590
200 502 375 320 282 38 12-Φ30 – – 580 640
250 568 445 385 345 42 12-Φ34 – – 665 680
300 648 510 450 408 46 16-Φ34 – – 760 810
350 762 570 510 465 52 16-Φ36 – – 820 890
400 838 655 585 535 58 16-Φ41 – – 860 940
450 914 680 610 560 60 20-Φ41 – – 930 1010
500 991 755 670 612 62 20-Φ48 – – 980 1130
600 1143 890 795 730 62 20-Φ54 – – 1040 1090
700 1346 995 900 835 68 24-Φ54 – – 1150 1210
800 1524 1135 1030 960 76 24-Φ58 – – 1305 1340
900 1727 1270 1168 1022 105 32-Φ54 – – 1505 1600
1000 1880 1238 1156 1086 114 32-Φ44 – – 1615 1705
1200 2184 1467 1372 1302 133 32-Φ51 – – 1925 2035
PN64
50 292 175 135 105 26 4-Φ23 260 160 – –
65 330 200 160 130 28 8-Φ23 350 180 – –
80 356 210 170 140 30 8-Φ23 500 220 – –
100 406 250 200 168 32 8-Φ25 800 250 320 430
125 508 295 240 202 36 8-Φ30 1000 295 340 450
150 495 340 280 240 38 8-Φ34 1200 360 485 590
200 597 405 345 300 44 12-Φ36 – – 580 650
250 673 470 400 352 48 12-Φ41 – – 665 720
300 762 530 460 412 54 16-Φ41 – – 760 840
350 826 595 525 475 60 16-Φ41 – – 820 930
400 902 670 585 525 66 16-Φ48 – – 870 990
500 1054 800 705 640 70 20-Φ54 – – 995 1150
600 1232 930 820 750 76 20-Φ58 – – 1100 1180
700 1397 1035 940 800 95 28-Φ51 – – 1180 1230
800 1651 1149 1054 914 108 28-Φ54 – – 1345 1385
900 1880 1270 1168 1022 114 32-Φ54 – – 1550 1655
1000 1981 1270 1175 1092 133 32-Φ51 – – 1675 1745
1200 2311 1511 1403 1308 152 28-Φ60 – – 1945 2075

Note: Technical specifications may change without notice due to ongoing technological advancements.
